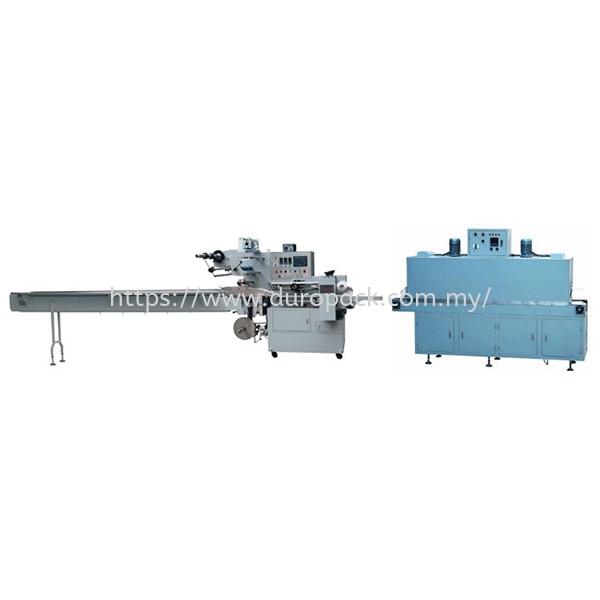

SFDD-Series Automatic Shrink Wrapper Horizontal Packaging Selangor, Malaysia, Kuala Lumpur (KL), Puchong Supplier, Suppliers, Supply, Supplies | Duro Pack (M) Sdn Bhd Packaging Sample Packaging Sample
Product Features
  • Display the packaging speed and length automatically, insuring cut-off accuracy.
  • User-friendly Imported PLC interface allowing for multilingual operation and access restriction features.
  • Comprehensive synchronization for date printer (optional) and feeding systems.
  • AC motor attached with converter, realizing the step-less control, dynamic adjustment in operation. High sensitivity photoelectric eye color tracking, numerical input of cutting sealing position for extra accuracy.
  • Adjustable Or Fixed bag former, could set short and long distance between fork spreader settings, which are convenient for changing product.
  • New type vertical seal heating, can seal at a low temperature and avoid burning film effectively. Simple driving system, reliable working, convenient maintenance.

Suitable for packing cup noodles, soap, paper boxes, bottled milk, etc.

Technical Parameters

Basic technical specifications SFDD SERIES

Maximum Film Width: 590MM
Bag Size: L=80-300mm, W=80-180mm, H=40-110mm
Film Material: POF
Thickness: 0.04-0.1mm
Film Roll: ID 75mm x OD 420mm
Max. Output/ speed: 160 bag / min
Actual Speed: Depending on bag length, output of used dosing device, product
Character: dosing size and required dosing accuracy.
Electricity Consumption: 1 Phase 220 V / 16 KVA, 50 Hz
Machine Size: (W) 1100mm x (H) 1760mm x (L) 7200mm
Machine Weight: 1500Kg
